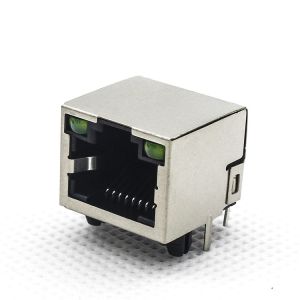

8 Pins 8 Contacts RJ45 PCB Connector With Shiled And Leds Tab-up Side Entry TM5JA811EX311

TM5JA811EX311 is RJ45 PCB Connector With Shiled,Tab-up ,Side Entry,8P8C ,LEDS left green/right green,without EMI. Selective gold plating thickness start from 3u; Length x Width x Height: 15.6 x 16.30 x 13.10 mm

Materials:

Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:
RJ45 Jack
1 x 1 Port / Single Port / One Port
Latch Down
Connector Length: 17.65 mm
Connector Width: 16.45 mm
Connector Height: 12.70 mm
Termimal Solder Pin Length: 2.5 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required

Drawing:
